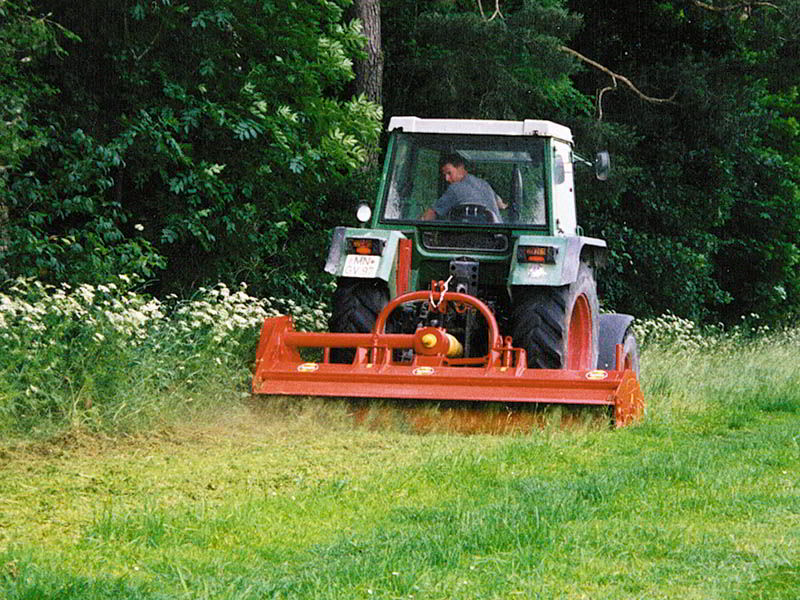

KMF mower-mulchers ideally adapt to the surface of the cultivated area.
244mm diameter roller with a large fit follows flat smooth movement on uneven surfaces.
It is possible to equip double-sided 3-point bracket, which allows attachment both from the front and and from behind without any effort.

Standard equipment

double-through drive and manual parallelogram sideshift adjustment, optionally hydraulic adjustment can be installed.

High quality belt drive as well as deep seating in the roller bearings and external belt tensioning system. Uniform distribution and spreading of the crushed mass.

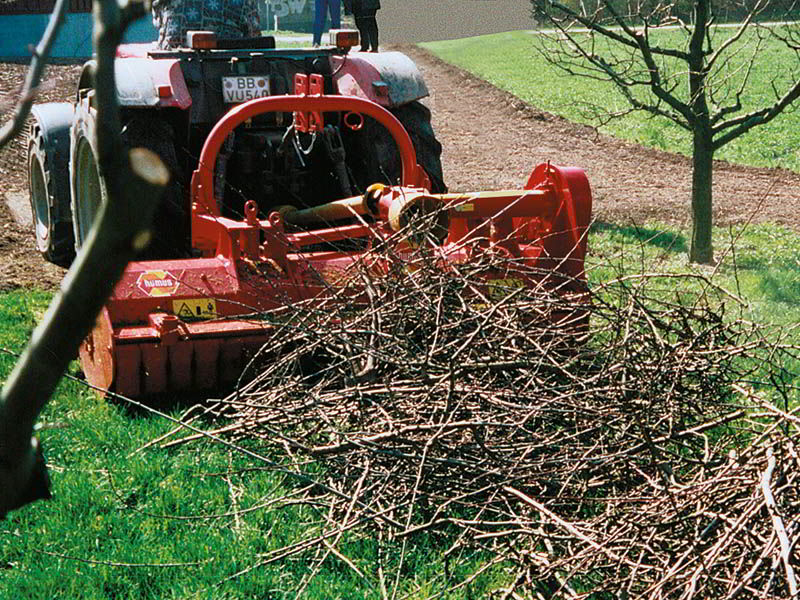

The KMF chopper works very easily without any blockage with a very high capacity. KMF shreds cut branches in gardens.

Features

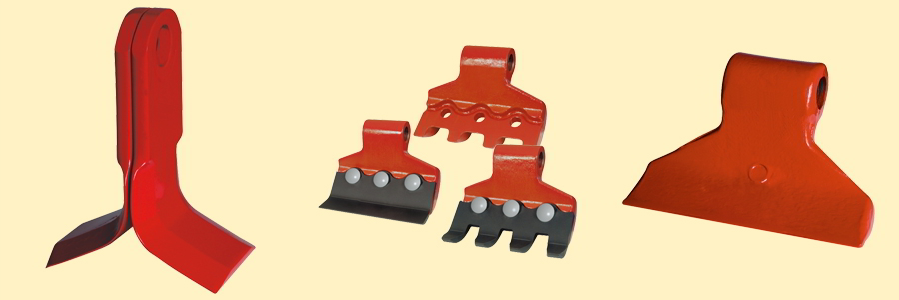

Customer’s choice of knives

• Wedge-shaped knives
• System hammers with flat or serrated blades
• Multipurpose hammers

Mounting method

— Front or back

Scope

• For pasture care
• Along roads and sidewalks
• For the care of parks and sports areas
• In the gardens
• At airfields
• In public utilities
• For silvicultural work
• For work on strawberry plantations
• For chopping cut branches, shrubs.

A lateral movable disc can be installed in the tree trunk to grind grass.
Brush for cleaning the near-trunk strip from branches.
Can be installed on KM for swathing cut branches. Suitable for choppers, both front-mounted and rear-mounted.

Technical data

• Twig shredding: diam. up to 10 cm
• Ejection and distribution of the crushed mass over the entire width of the rollers.
• Stable and warp-resistant steel body
• High quality bevel gear: strong, flexible rotor shaft drive with reinforced V-belt, belt tensioned automatically.
• Self-cleaning roller on large bearings, with rounded ends “not damaging” the soil for guiding and adjusting the height of the chopper — can be equipped with wheels on request.
• Adjust the cutting height of the grass from 3 to 15 cm using a roller.
• Two support legs.
• Cut branches through the intake opening and tear bars accumulate in the body, where they are very well chopped.
• Maintenance-friendly design with easily accessible lubrication points.
