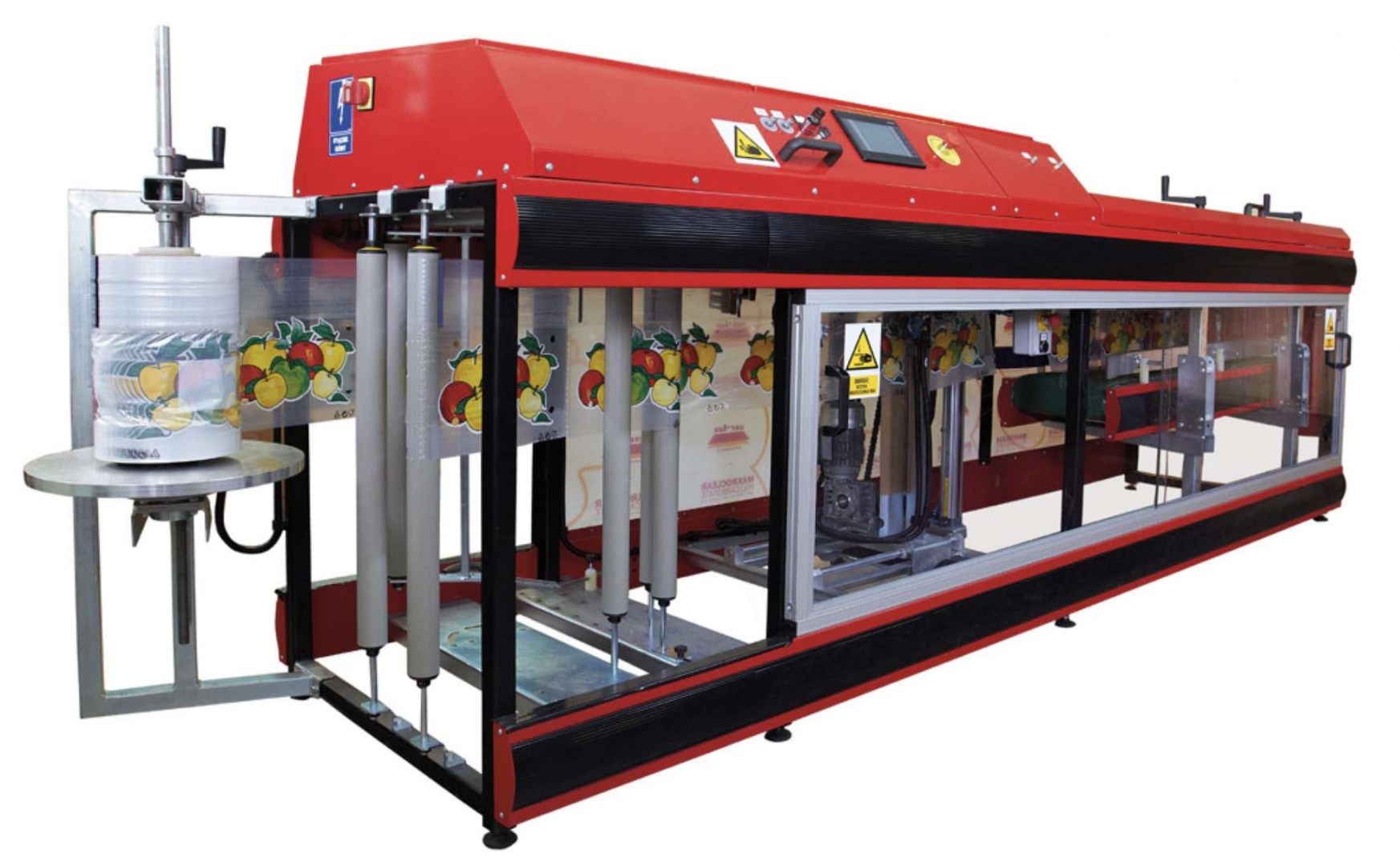

Automatic bag filling machine NW-01

The machine for automatic or manual packing of delicate spherical fruit or vegetables.
The machine is perfect for packing apples, pears, plums, citrus fruit and vegetables such as potatoes, onions, carrots, beetroots.
The whole procedure of feeding, bags filling and sealing is fully automatic. The machine’s design enables easy replacement of a roll of poly-bags. The inner conveyor’s height and the level of tilting are adjusted manually by two handles. All functions are controlled by a programmable panel through a touch screen.
The machine is compatible with a Sorter’s multi-head weighing machine WNA-14K or can be adapted to work in line with already exiting packing line. The machine’s parts which are in direct contact with fruit are protected by the soft material which guarantees delicate filling and products packing.

320 x 320 mm для 1,5 kg

320 x 320 mm для 1,0 kg

320 x 350 mm для 1,5 kg

360 x 430 mm для 3,0 kg

320 x 320 mm для 1,0 kg

NW-01 is designed to use polyethylene and raschel bags. The bags’ length is standard for the weight from 0,5 kg to 2 kg and equals 320 mm, whereas the width depends on the bag’s capacity.

TECHNICAL SPECIFICATION NW-01

Packing range

0,5 — 3 kg

Electric consumption

1 kW

Voltage

3x400V 50Hz

Air consumption

190 l/min

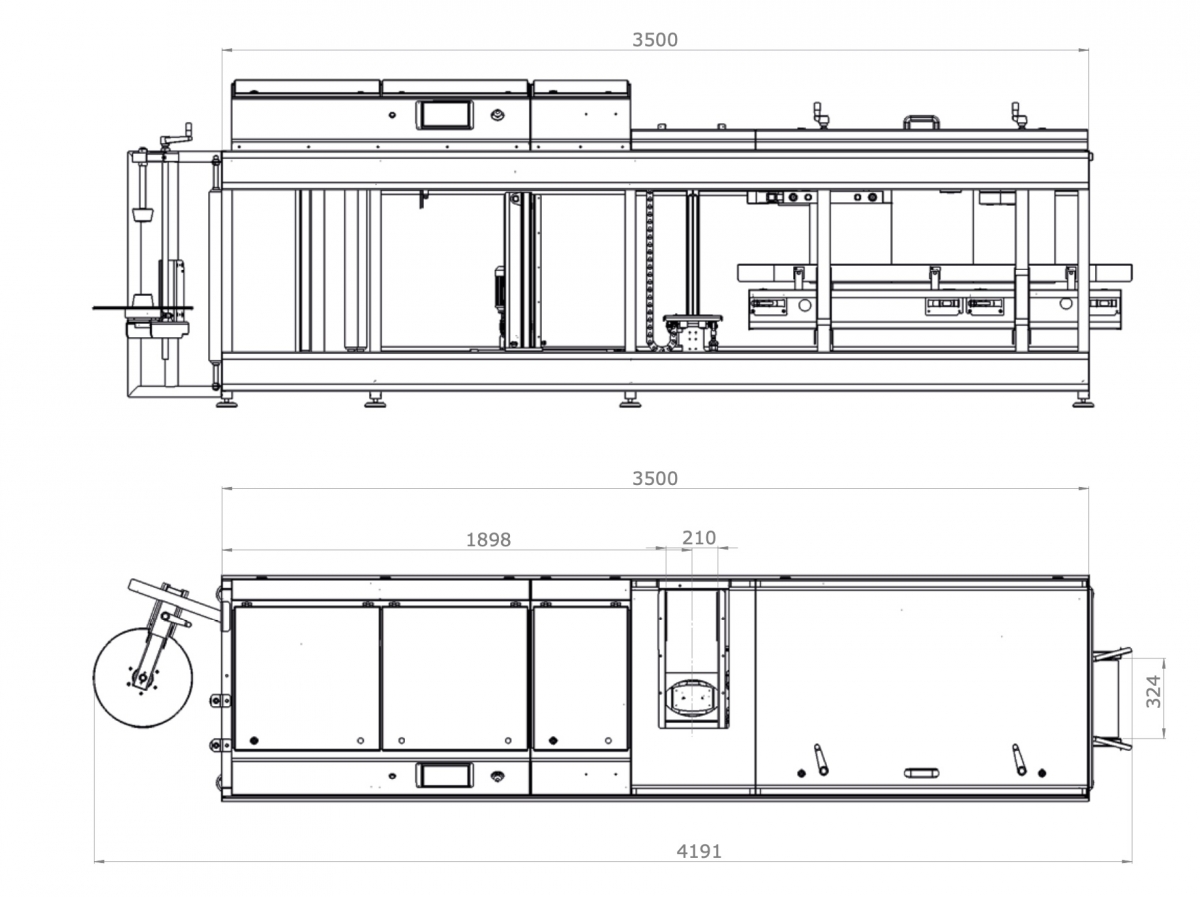

Dimensions

800 x 3500 x 1100 mm

Bags’ width

320x320 mm for 1,0 kg, 320x350 mm for 1,5 kg, 320x380 mm for 2,0 kg, 360x430 mm for 3,0 kg,

Bags’ types

polyethylene bags, raschel knitted bags

ADVANTAGES:

- automatic packing, filling and sealing process
 — delicate product packing
 — data printing directly at the bag
 — one machine for various fruit and vegetables
 — fully integrated with multi-head weighing machine WNA-14K
